    Built To Take a Beating!

    ranger slider

    Weld-It-Yourself! Rock Slider Builder 60"-96" Lengths

    5.0

    Customize and create your sliders to your liking! We offer these options in Pre-Welded, and DIY Kits! See our other listing for the Pre-Welded version and have us do the main welding for you!

    This listing gets your sliders in your choice of tubing and material, pre-cut and pre-bent. You need to notch, fit, and weld everything together!

    NEW FOR 2023! Download cut wrappers and use them to help you notch and fit your sliders! Find them here! Cut Wrappers


    Sliders are the first step in protection for your rig. Rock Sliders are built to protect your rocker from trail damage and our heavy-duty design can take a beating, while keeping the body unharmed. These sliders will fit many different vehicles, just check for the length you need by measuring and make sure to measure wheel well to wheel well to determine the length needed. The main slider is available in 2"x 2" x 0.120 square tube or 1.75" x 0.120 round. Outer rails are made from 1.75" x 0.120 round DOM or HREW tubing. The legs are made from the same material as the available main slider base: 2"x 2" 0.120 square or 1.75" 0.120 round.

    • Main Slider made from 2"x 2" x .120 Square or 1.75" X .120 Round

    • Outer rail made from 1.75" X .120 round DOM or HREW tubing

    • Legs are made from your selected main slider material

    • Heavy duty design can take a pounding from the rocks

    • Strong enough to take the entire weight of the truck

    • A high-lift jack can be used anywhere along it's length

    • Sold in pairs

    • Shipped unpainted

    • Products are built to order; please allow 2-3 weeks for fabrication and shipment of your order.

    Your Price:

    $395.95

    Weld-It-Yourself Rock Sliders Come with Cut Wrappers So You Never Miss a Cut!

    Cut wrappers are meant to be an instructional guide when cutting your tubing so that you can cut the right angles. Each set of sliders come with these wrappers and will be in the box upon delivery! If they happen to not be in the box, we have them for download on our website.

    Ford Ranger Super Crew Cab- Bolt-On-Ready Rock Sliders!

    Love the idea of our Weld-It-Yourself Rock Sliders but don't want to do all the welding work? No problem!


    You can visit our website to view your bolt-on-ready sliders too! Our 2019 to Present rock sliders for your Ford Ranger Super Crew Cab are heavy duty and ready to take a major beating while keeping your undercarriage safe!


    Don't have a Ford Ranger Super Crew Cab? Still not a problem. Just visit here Rock Sliders – Hot Metal Fabrication

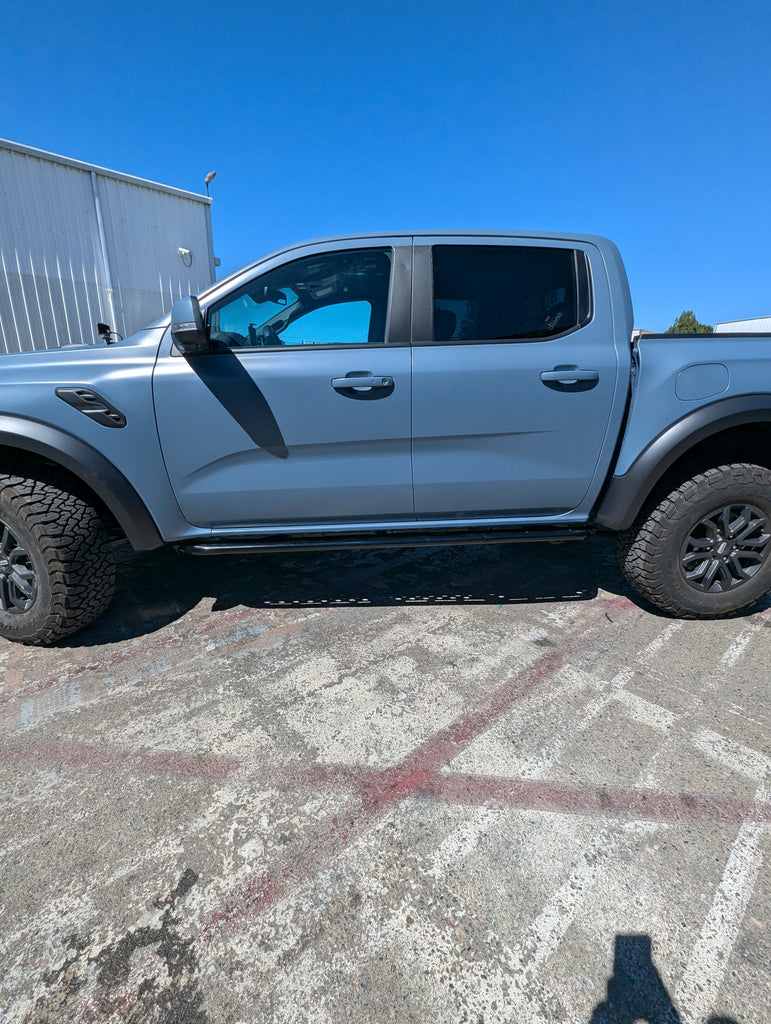

    Upgrade Your 2024 Ford Raptor Ranger with Our Heavy-Duty Rock Sliders!

    2024 Ford Raptor Ranger Rock Sliders!

    2024 Ford Raptor Ranger Rock Sliders!

    5.0

    Upgrade Your 2024 Ford Raptor Ranger with Our Heavy-Duty Rock Sliders!

    HotMetalFab is excited to offer 2024 Ford Raptor Ranger Rock Sliders, engineered for ultimate off-road performance and protection. These bolt-on rock sliders are designed specifically for the Raptor model and are built to handle the toughest trails with ease.

    Easy Installation

    Our Ford Raptor Ranger Rock Sliders feature a simple installation process:

    • Passenger Side: Drill two holes and install rivet nuts.
    • Driver Side: Comes with factory pre-drilled holes for a quicker setup.

    For a complete guide, check out our detailed Ford Ranger Rock Slider Installation Video on YouTube:
    Watch the Video

    Why Choose Our 2024 Ford Raptor Ranger Rock Sliders?

    Designed with off-road durability in mind, our rock sliders feature a three-leg design and unique reinforcements for maximum protection and strength:

    • Front Bracket: Wraps around two sides of the frame for added durability.
    • Middle Bracket: Includes a slanted support tube for enhanced strength.
    • Rear Bracket: Wraps around two sides and mounts using existing factory holes for straightforward installation.

    Additional features:

    • Front Leg Reinforcement: A forward-facing gusset for extra strength.
    • Custom Design: Includes a Raptor logo in the rear. Prefer dimple die plates instead? Let us know, and we’ll customize your order!

    Rock Solid Materials

    • Main Slider Construction: Made from 2" x 2" x .120 square tubing, 84" in length.
    • Outer Rail: Crafted from 1.75" x .120 round tubing, available in DOM (Drawn Over Mandrel) or HREW (Hot Rolled Electric Weld).
    • Legs: Built from the same durable materials as the main slider.
    • Optional Dimple Die Filler Plates: Add extra rigidity and style.

    Built for the Toughest Terrain

    • Strong enough to support the entire weight of your 2024 Ford Raptor Ranger.
    • Compatible with a hi-lift jack anywhere along its length for quick off-road repairs.
    • Sold in pairs for full side protection.
    • Shipped unpainted and uncoated to allow for custom finishes.

    Note on Build Styles

    Our rock sliders can be built in two configurations:

    1. Tapered Front Tube: The front tube tapers into the rear kick-out.
    2. Parallel Front Tube: Both tubes run parallel to each other.

    Unless otherwise specified, your rock sliders will be built with a tapered front tube, as we believe this design performs better by preventing the slider from catching on rocks. If you prefer the parallel style, please let us know when placing your order.

    Weld-It-Yourself Kits Available

    For DIY enthusiasts, we offer Weld-It-Yourself Rock Slider Kits. You’ll receive pre-cut and pre-bent DOM tubing, including the Raptor logo plates. Prefer dimple die plates instead? Let us know, and we’ll customize your kit. All necessary hardware is included, but no instructions are provided.

    Shipping and Fabrication Time

    • Ships via UPS Ground.
    • Please allow 5-7 weeks for fabrication and shipping.

    Interested in Powder Coating?

    We offer powder coating for your Ford Raptor Ranger Rock Sliders, though shipping coated items can present challenges. Contact us to discuss your options—we’re always happy to help!

    Additional Notes

    Minor trimming of the pinch weld is needed at the very front of the slider. Alternatively, we can send a spacer upon request.

    Order Your 2024 Ford Raptor Ranger Rock Sliders Today!
    Don’t wait to upgrade your Raptor with our premium rock sliders. Visit our website to place your order or learn more!

    Your Price:

    $995.95
