Upgrade Your 2024 Ford Raptor Ranger with Our Heavy-Duty Rock Sliders!
HotMetalFab is excited to offer 2024 Ford Raptor Ranger Rock Sliders, engineered for ultimate off-road performance and protection. These bolt-on rock sliders are designed specifically for the Raptor model and are built to handle the toughest trails with ease.
Easy Installation
Our Ford Raptor Ranger Rock Sliders feature a simple installation process:
- Passenger Side: Drill two holes and install rivet nuts.
- Driver Side: Comes with factory pre-drilled holes for a quicker setup.
For a complete guide, check out our detailed Ford Ranger Rock Slider Installation Video on YouTube:
Watch the Video
Why Choose Our 2024 Ford Raptor Ranger Rock Sliders?

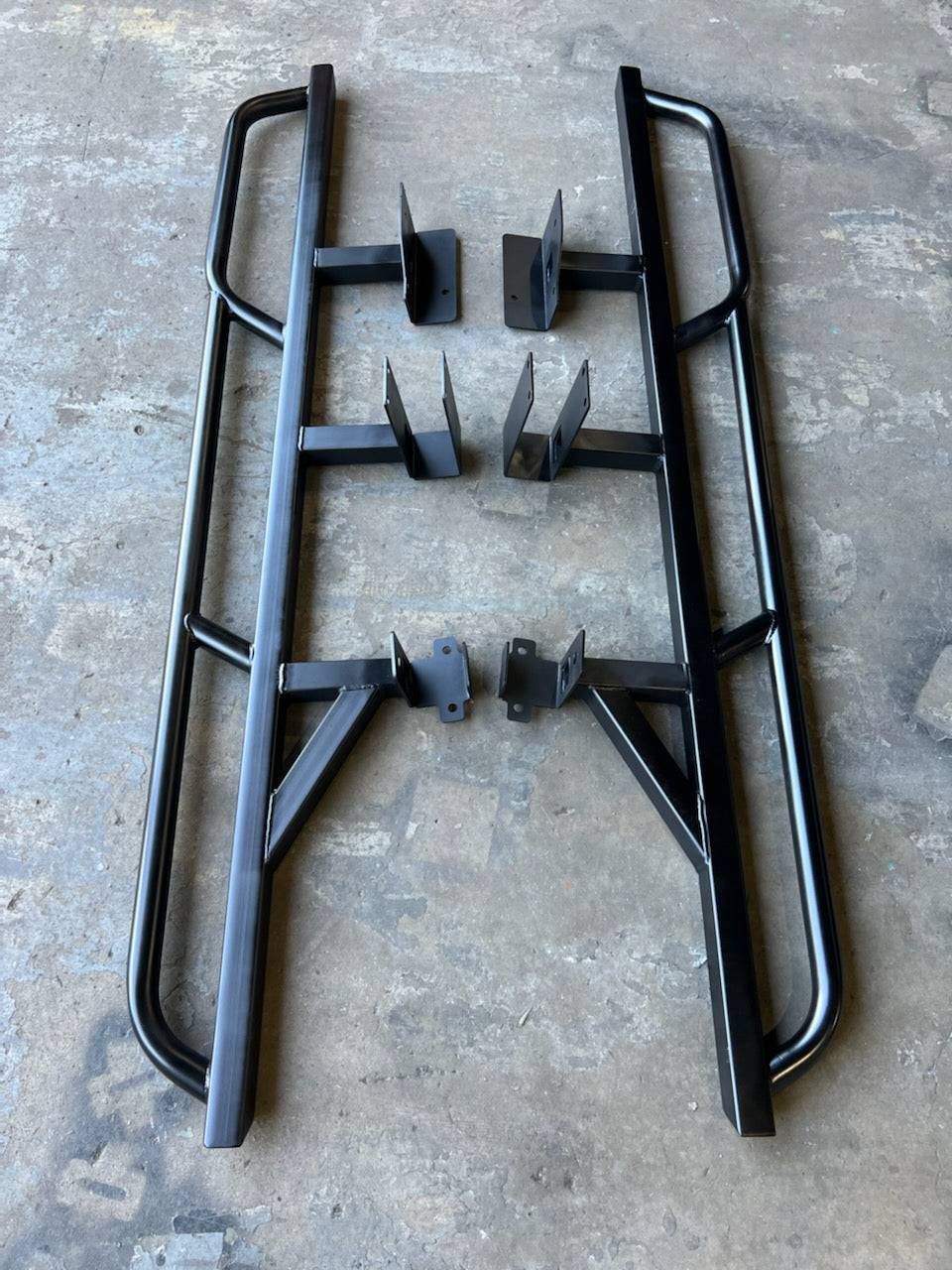

Designed with off-road durability in mind, our rock sliders feature a three-leg design and unique reinforcements for maximum protection and strength:
- Front Bracket: Wraps around two sides of the frame for added durability.
- Middle Bracket: Includes a slanted support tube for enhanced strength.
- Rear Bracket: Wraps around two sides and mounts using existing factory holes for straightforward installation.
Additional features:
- Front Leg Reinforcement: A forward-facing gusset for extra strength.

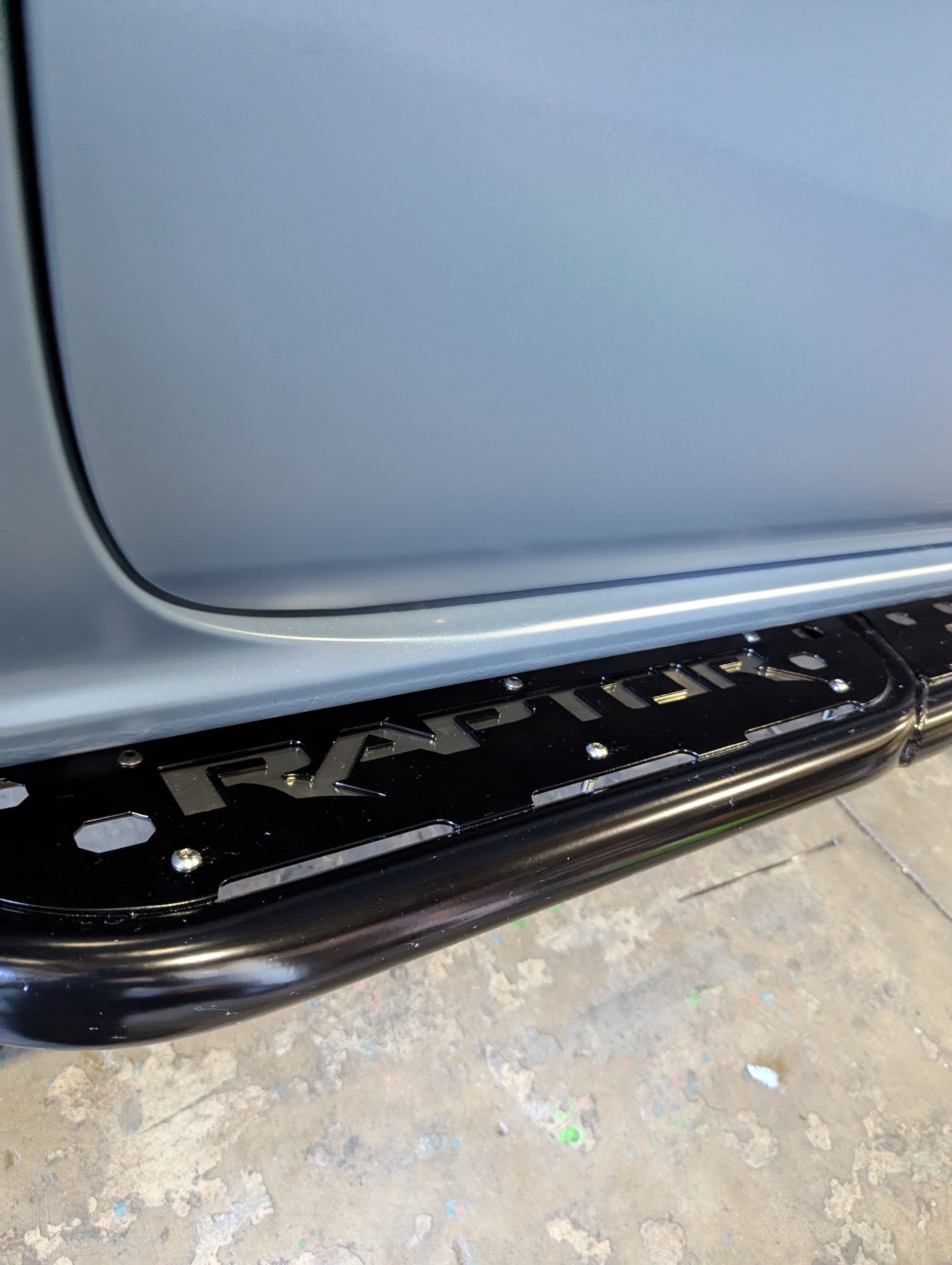

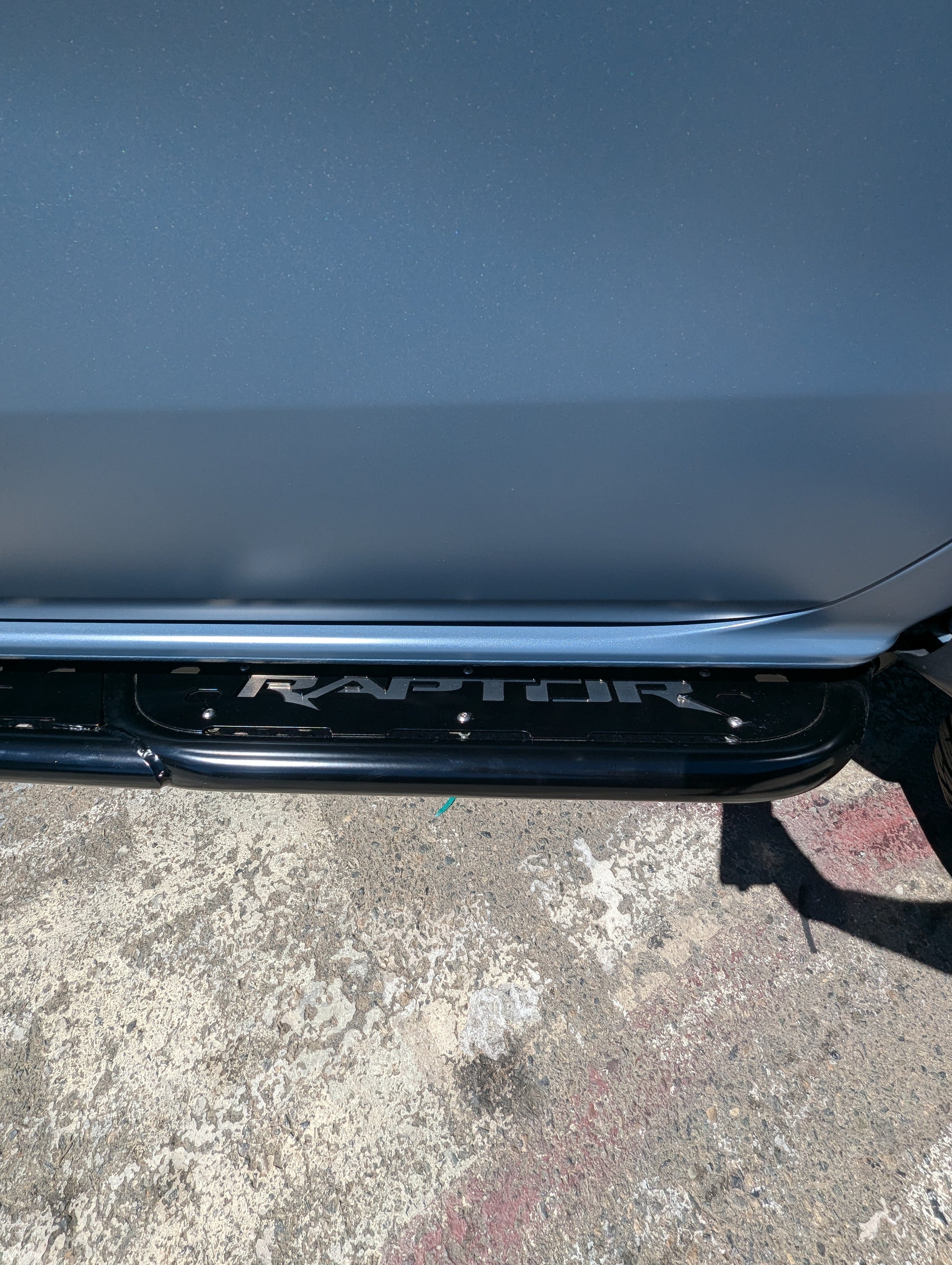

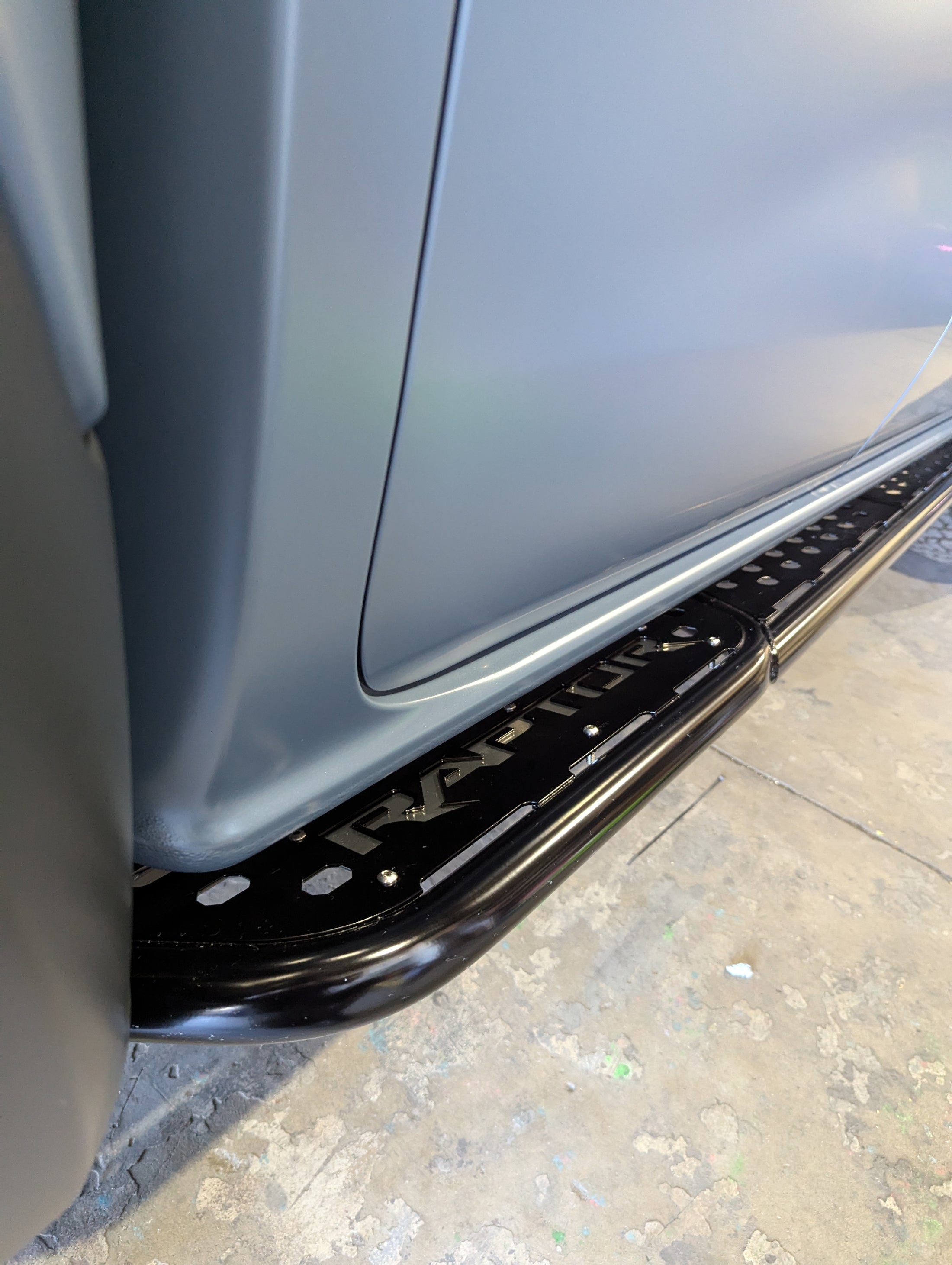

- Custom Design: Includes a Raptor logo in the rear. Prefer dimple die plates instead? Let us know, and we’ll customize your order!
Rock Solid Materials
- Main Slider Construction: Made from 2" x 2" x .120 square tubing, 84" in length.
- Outer Rail: Crafted from 1.75" x .120 round tubing, available in DOM (Drawn Over Mandrel) or HREW (Hot Rolled Electric Weld).
- Legs: Built from the same durable materials as the main slider.
- Optional Dimple Die Filler Plates: Add extra rigidity and style.

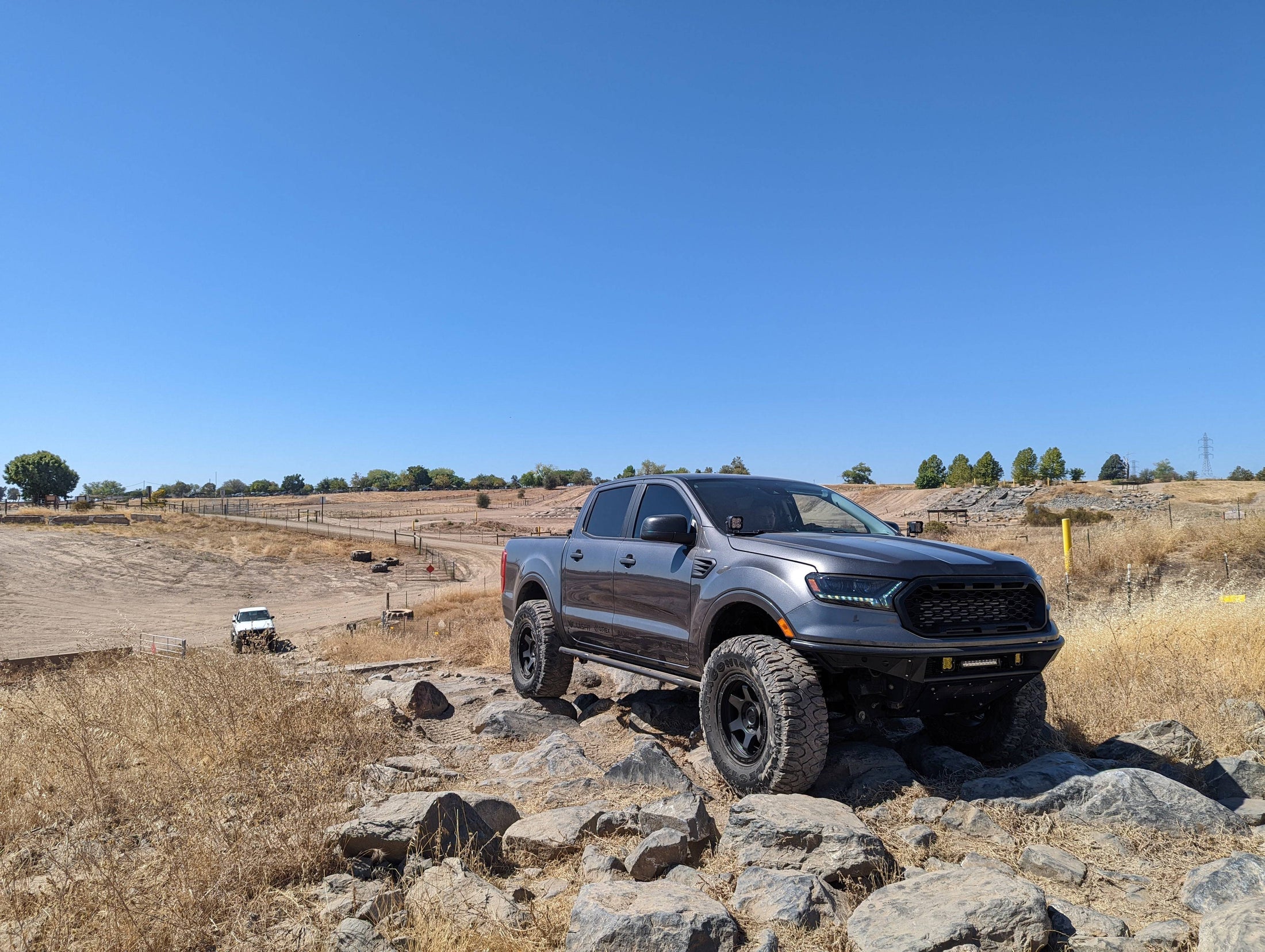

Built for the Toughest Terrain

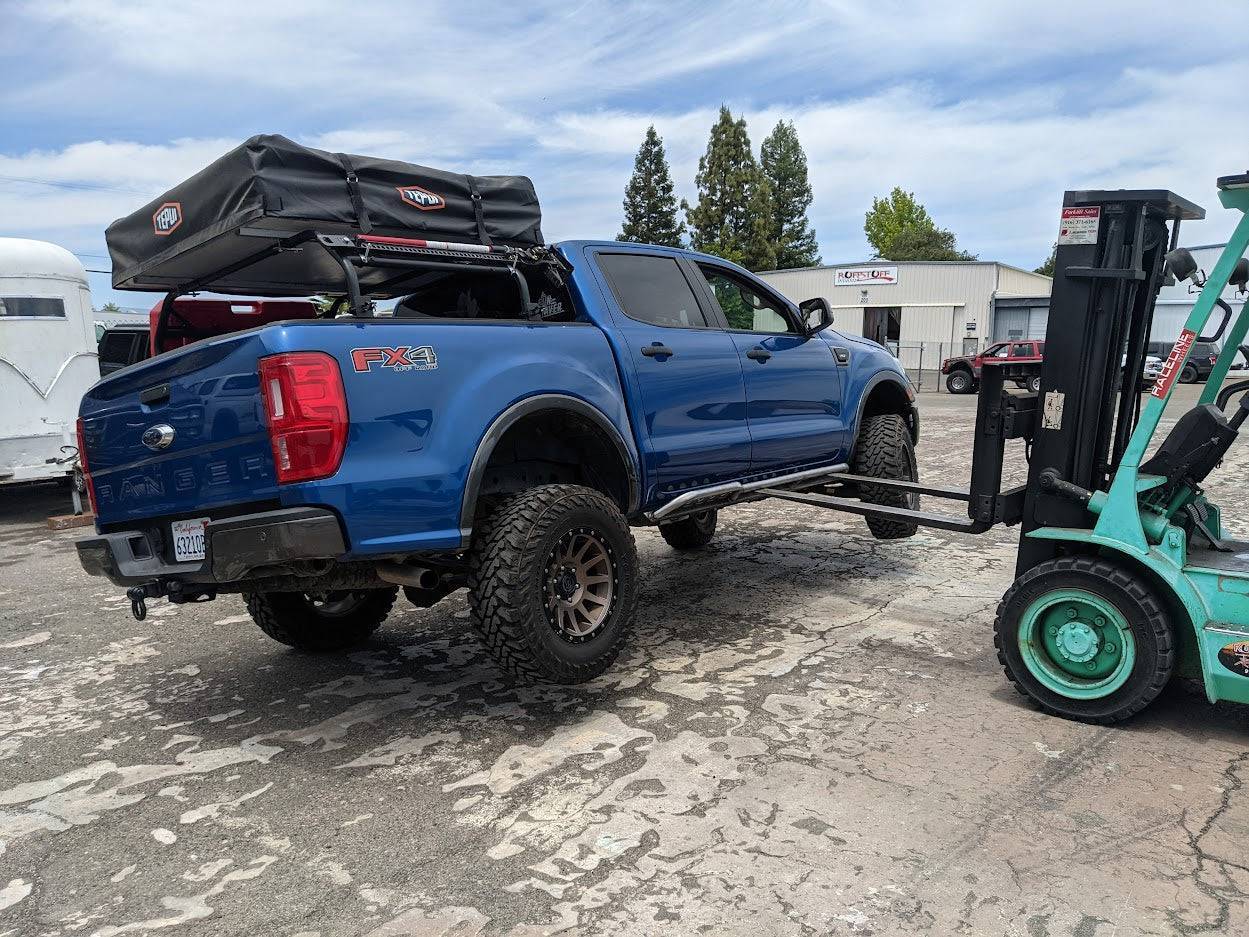

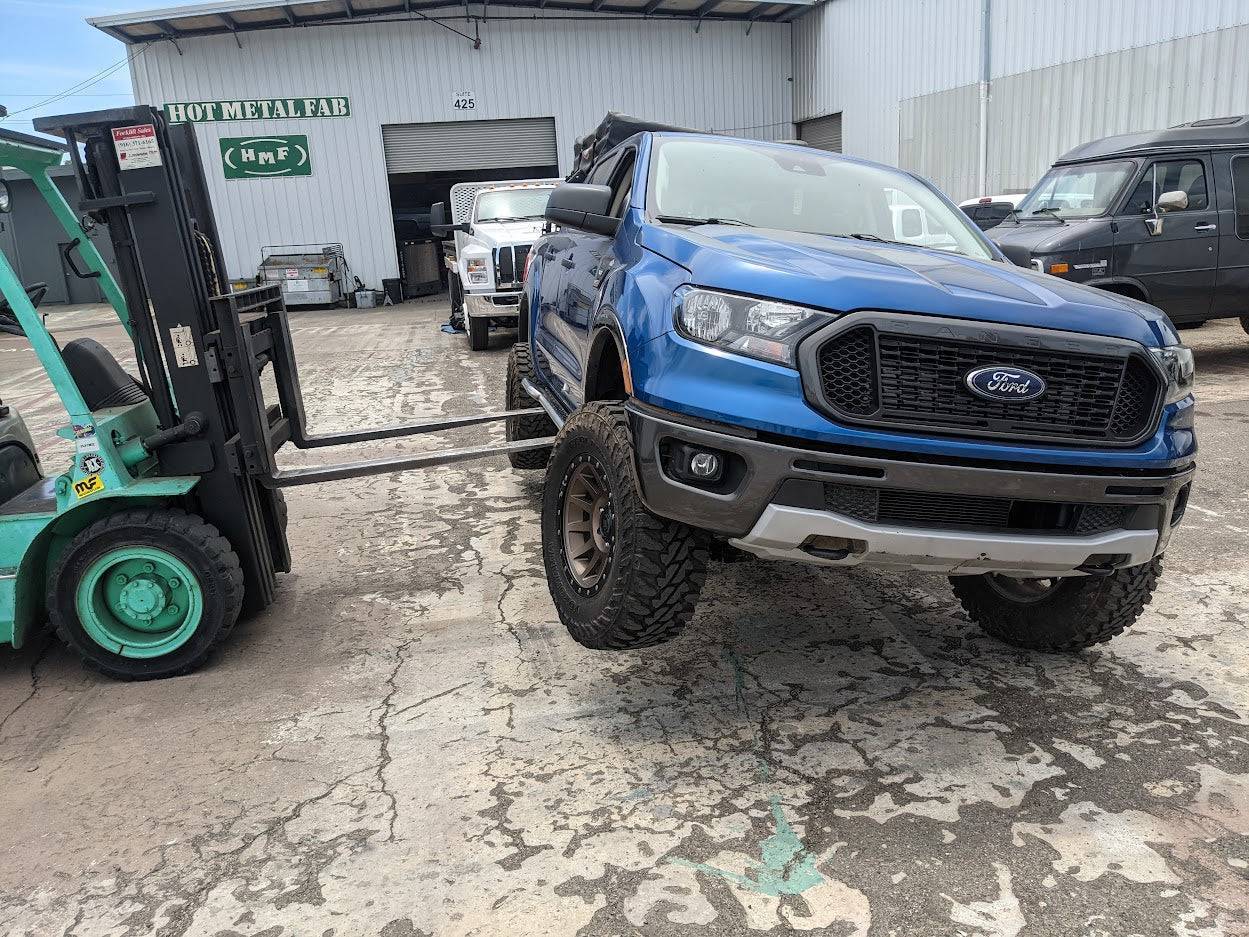

- Strong enough to support the entire weight of your 2024 Ford Raptor Ranger.
- Compatible with a hi-lift jack anywhere along its length for quick off-road repairs.
- Sold in pairs for full side protection.
- Shipped unpainted and uncoated to allow for custom finishes.
Note on Build Styles
Our rock sliders can be built in two configurations:
- Tapered Front Tube: The front tube tapers into the rear kick-out.

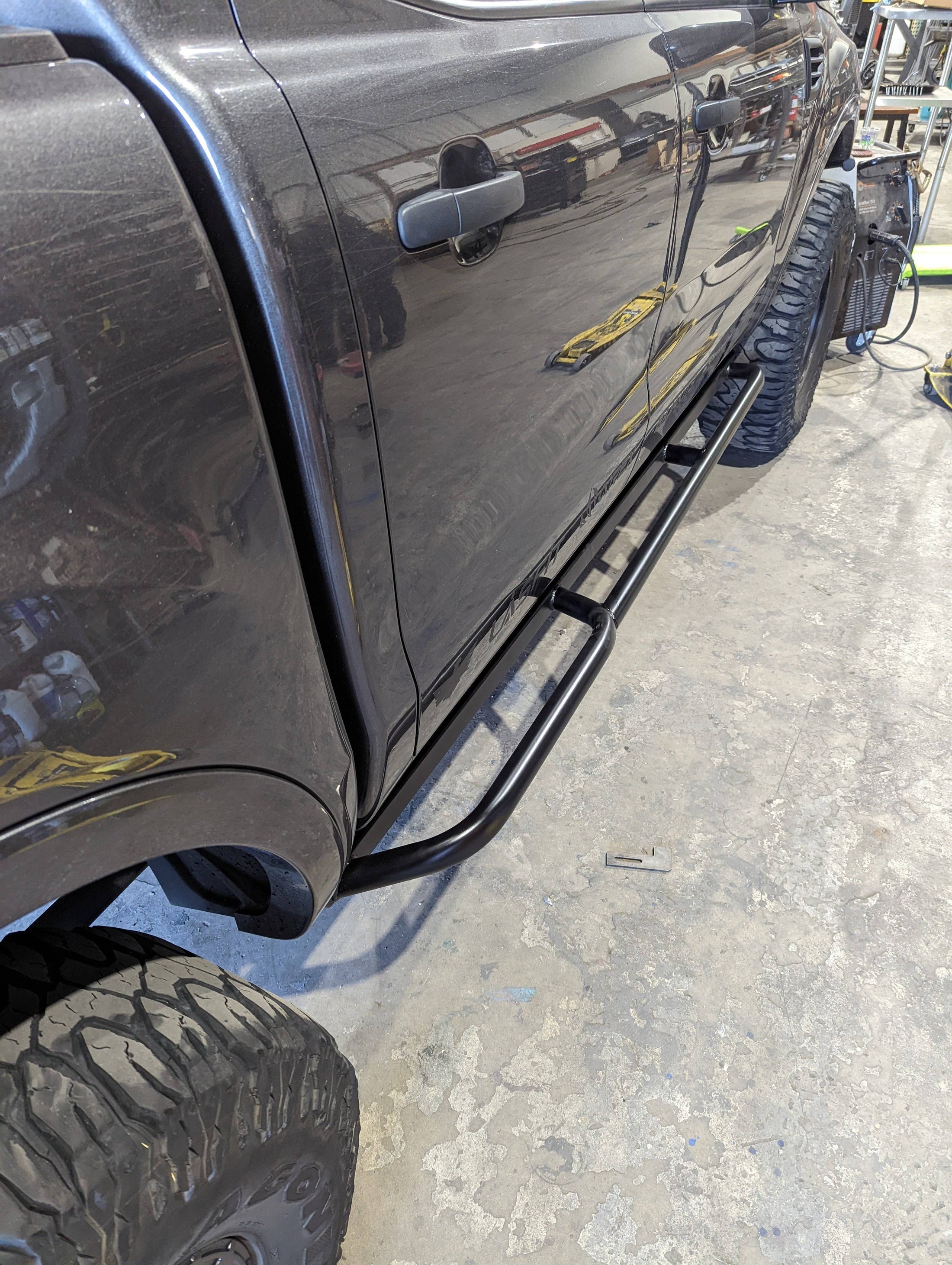

- Parallel Front Tube: Both tubes run parallel to each other.
Unless otherwise specified, your rock sliders will be built with a tapered front tube, as we believe this design performs better by preventing the slider from catching on rocks. If you prefer the parallel style, please let us know when placing your order.
Weld-It-Yourself Kits Available
For DIY enthusiasts, we offer Weld-It-Yourself Rock Slider Kits. You’ll receive pre-cut and pre-bent DOM tubing, including the Raptor logo plates. Prefer dimple die plates instead? Let us know, and we’ll customize your kit. All necessary hardware is included, but no instructions are provided.
Shipping and Fabrication Time
- Ships via UPS Ground.
- Please allow 5-7 weeks for fabrication and shipping.
Interested in Powder Coating?
We offer powder coating for your Ford Raptor Ranger Rock Sliders, though shipping coated items can present challenges. Contact us to discuss your options—we’re always happy to help!
Additional Notes
Minor trimming of the pinch weld is needed at the very front of the slider. Alternatively, we can send a spacer upon request.
Order Your 2024 Ford Raptor Ranger Rock Sliders Today!
Don’t wait to upgrade your Raptor with our premium rock sliders. Visit our website to place your order or learn more!
