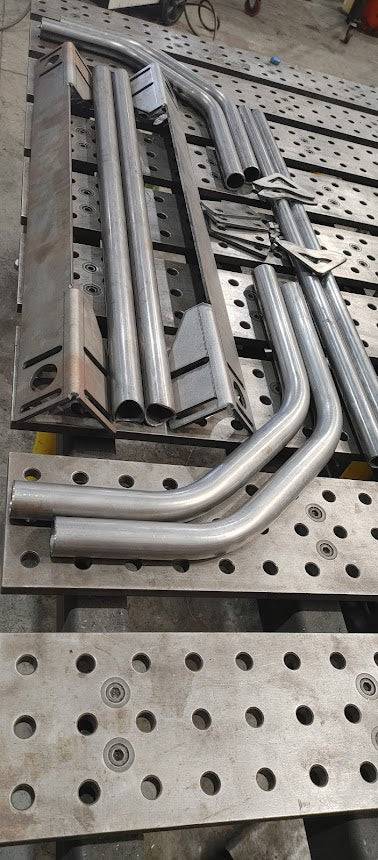

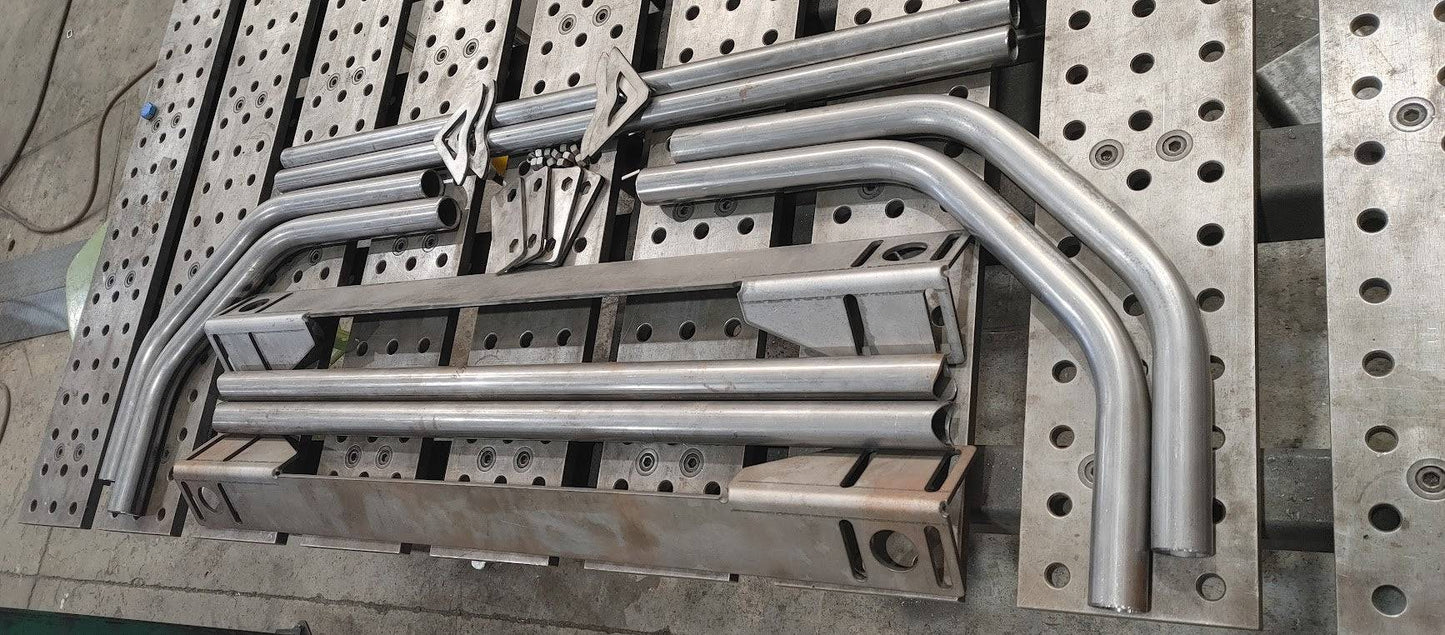

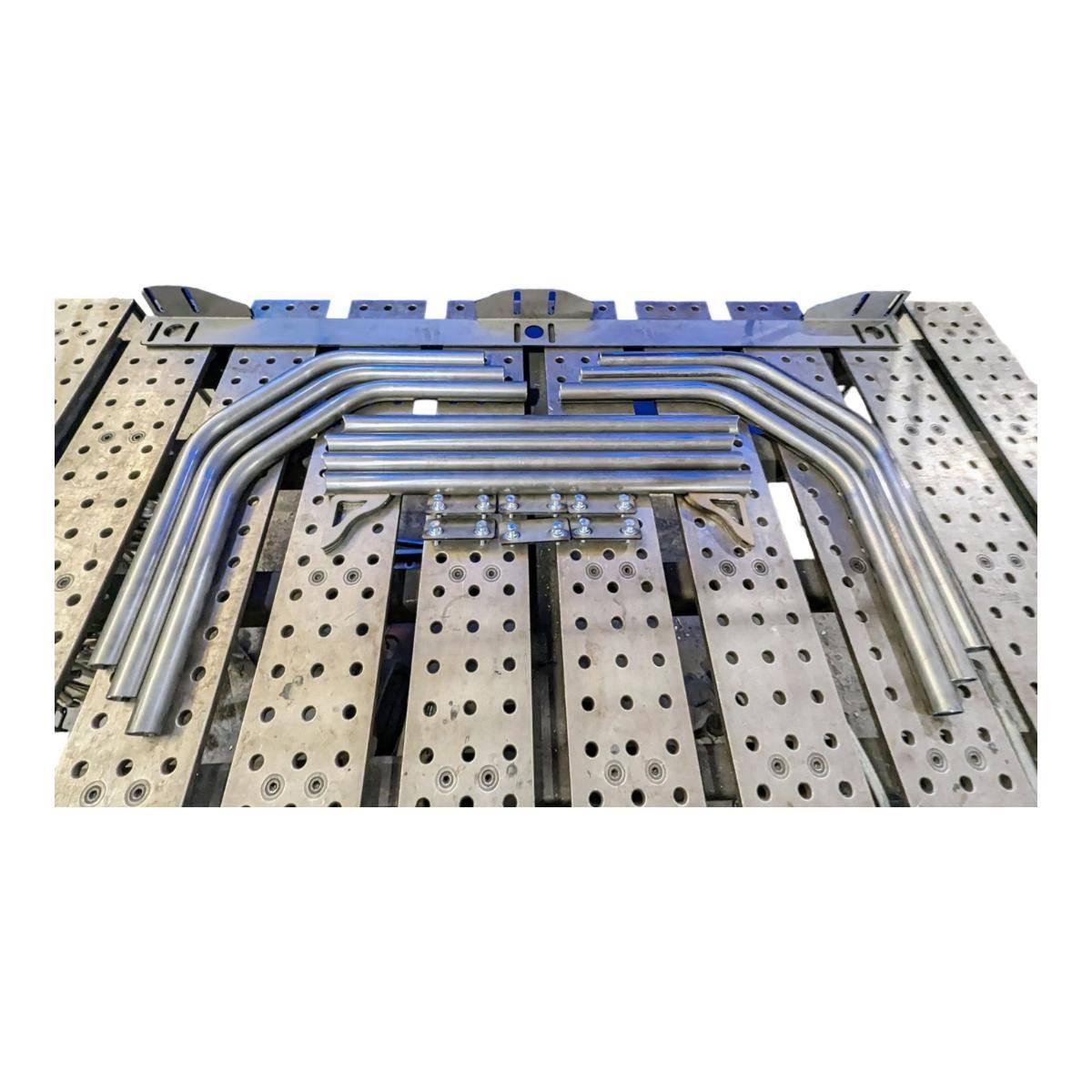

This is our DIY Kit for our world famous bed racks! We'll send you pre-bent and pre-cut pieces, all you need to do is assemble everything on your truck, tack it all together, and weld it up! Design remains width adjustable! 46" Long baseplates for longer truck beds! You will receive:
One set of 3/16" thick Bed Rack Base Plates at 46 inches long
Four upright, precut and prebent tubes at your chosen height
Two upright pre-notched connection cross tubes OR two pre-bent MOLLE Panels
Two sleeve bedrack half cross tubes

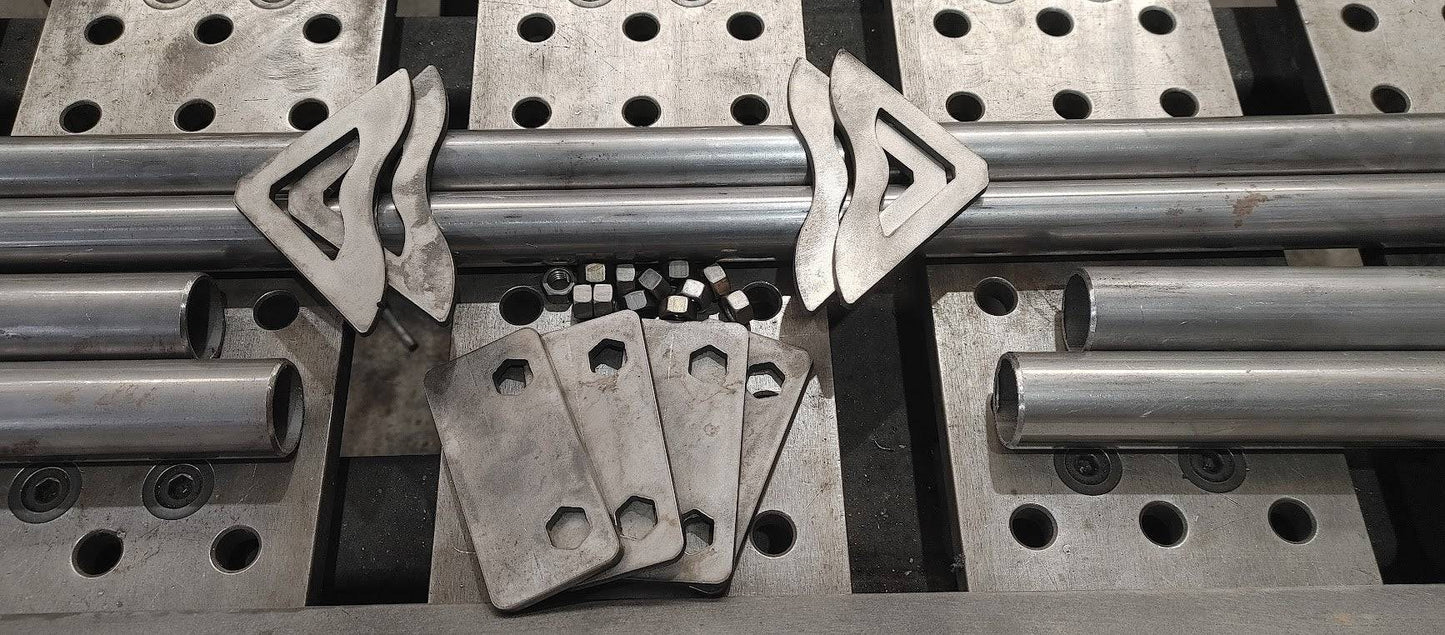

Four 3/16" angle gussets (not provided if you choose MOLLE Panels)
Four mounting brackets of your choice
3/8"-16 weld nuts to weld into your chosen brackets
All mounting hardware

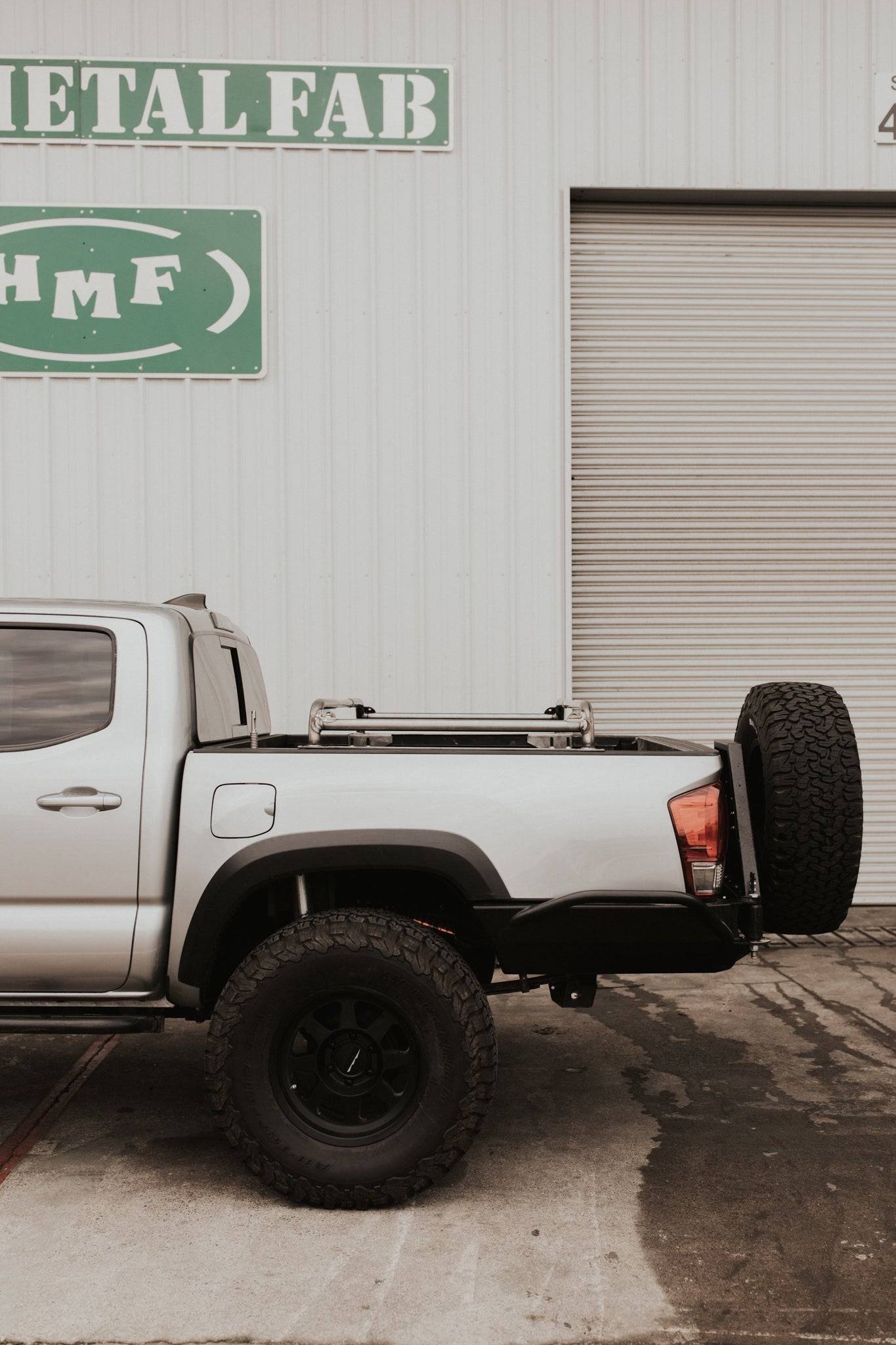

Once assembled, it will hold a roof rack, rooftop tent, or whatever you want to put on it! We have three different heights to offer this to you in. Low profile, which is 6" tall, mid-height which is 11.5" tall, and standard height at 15" tall. We have an over-sized height available as well that comes 22" tall!
The base of the rack is 46" long total, and the width is adjustable to fit a wide variety of trucks!
Universal design fits most pickup beds. Bolts directly to Tacoma and Tundra factory sliding bed rails with our Standard Brackets. Or, if you have a truck without the accessory track system, our universal mounting pinch brackets grab under the bedside so there is no drilling necessary for installation. We also have Nissan Utility Track brackets!
Heavy duty design will hold the weight of any rooftop tent or any roof rack.
*Static weight capacity 1,000lbs
*Dynamic weight capacity - 400lbs
4 available heights, 6 inches, 11.5 inches, 15 inches, and 22 inches.
Base of rack is 46 inches long
Universal pinch mounting brackets means no drilling for trucks without an accessory track on the bed rails
